There’s a deprecated quickstart version of AWX that every tutorial stops at: a docker-compose up on a single host.
It works for ten minutes and falls over the moment you treat it as real.

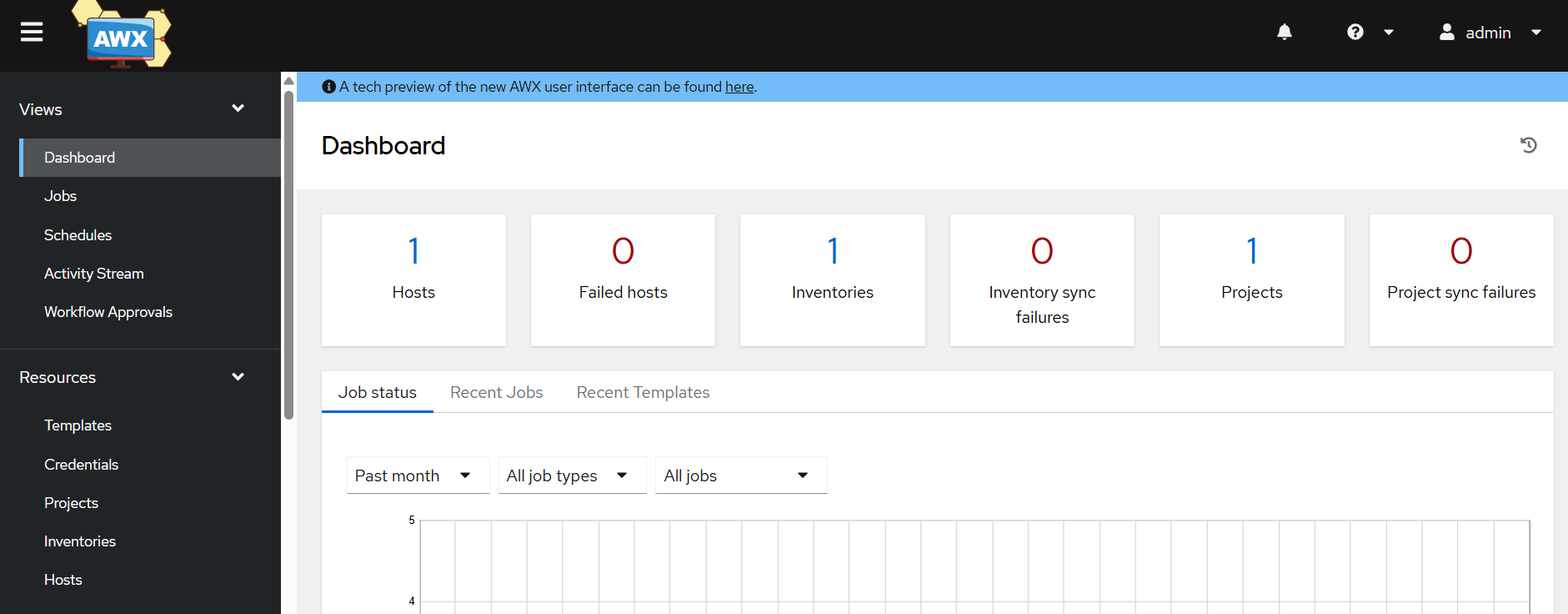

So, this is the other version: AWX deployed the way it’s actually run in production environments.
- The AWX Operator on Kubernetes as the control plane
- An external, dedicated PostgreSQL instead of the throwaway pod (TBA).
- Dedicated execution nodes joined over a Receptor mesh, so playbooks run isolated from the control plane
- Inventories pulled from my own GitLab Container Registry.
- Exposed to the world via Ingress (you probably wanna do it privately)
Why Kubernetes-only
IMPORTANT
Forget every old tutorial using
docker-compose. Since AWX 18 (2021) the only supported install method is the AWX Operator on Kubernetes. The native/Docker installer is end-of-life. The question “how do I deploy AWX” has become “what Kubernetes do I run it on, and how do I configure the operator”.
The AWX Operator is a Kubernetes operator: you give it a custom resource (kind: AWX) describing the deployment you want, and it reconciles the cluster to match, creating the web pods, task pods, services, and (optionally) a database pod.
Upgrades, scaling, and backups are all driven by editing custom resources.
Architecture
flowchart TB Visitor((🌍 user)) subgraph K8S["☸️ Kubernetes / KaaS — AWX control plane"] Ingress["🔒 Ingress + TLS<br/>(cert-manager)"] Web["🌐 awx-web ×N<br/>(UI / REST API)"] Task["⚙️ awx-task ×N<br/>(orchestrator + Receptor)"] EE0["📦 awx-ee<br/>(default Execution Env)"] Op["🔧 awx-operator"] end subgraph EXEC["🛰️ Execution nodes (Receptor mesh)"] EX1["exec-node-1<br/>(Podman + EE)"] EX2["exec-node-2<br/>(Podman + EE)"] end PG[("🗄️ PostgreSQL<br/>external / HA")] REG["📚 EE image registry<br/>(GitLab Container Registry)"] Targets["🖥️ managed hosts<br/>(VMs, network gear, cloud)"] Visitor -- "HTTPS" --> Ingress --> Web Web --> Task Task -- "Receptor mesh<br/>(mTLS, :27199)" --> EX1 Task -- "Receptor mesh" --> EX2 Web -. "read/write" .-> PG Task -. "read/write" .-> PG EX1 -- "pulls EE image" --> REG EX2 -- "pulls EE image" --> REG EX1 -- "SSH / WinRM / API" --> Targets EX2 -- "SSH / WinRM / API" --> Targets
The AWX control plane lives in our Kubernetes worker nodes.
The actual playbook execution happens on dedicated execution node VMs.
The database and EE registry are external services.
Core components
| Component | What it does | Where it runs |
|---|---|---|
| awx-operator | Reconciles the AWX custom resource into the running deployment | K8s (operator namespace) |
| awx-web | Serves the UI and REST API. Stateless → scale horizontally | K8s pods (×N) |
| awx-task | The orchestrator: schedules jobs, dispatches work over the Receptor mesh, runs the task queue | K8s pods (×N) |
| awx-ee | The default Execution Environment: runs jobs inside the cluster when no separate execution nodes are configured | K8s pod |
| PostgreSQL | Stores everything: inventories, job history, encrypted credentials, RBAC | External (not the operator’s managed pod, in production) |
| Execution nodes | Where playbooks actually run, isolated from the control plane, joined via Receptor | Dedicated VMs |
| EE registry | Hosts the container images jobs run inside | External (e.g. GitLab Registry) |
The Receptor mesh
This is the piece that confuses most newcomers.
Receptor is the overlay network that connects the AWX control plane to the execution nodes.
The control plane (awx-task) doesn’t SSH into your servers directly, it dispatches a work unit over the Receptor mesh to an execution node, which runs the playbook and streams the result back.
Nodes in the mesh have one of three roles:
| Node type | Role |
|---|---|
| Control | The awx-task pods. Originate work, hold the job queue. |
| Execution | Run the playbooks (via Podman, inside an EE container). The actual workers. |
| Hop | Optional relay nodes that bridge network segments (DMZ, remote sites, NAT) so the control plane never needs a direct route to every execution node. |
INFO
In a small deployment the mesh is flat, the control plane connects directly to each execution node: Hop nodes only become necessary when execution nodes live behind network boundaries the control plane can’t reach directly.
Execution Environments
An Execution Environment (EE) is a container image that bundles everything a playbook needs to run.
You build it with ansible-builder (a declarative execution-environment.yml → a container image), push it to a registry, and AWX pulls it on each execution node at job time.
The playbook runs inside that container, isolated from the host.
TIP
This is where the self-hosted GitLab guide pays off: build your EE images in GitLab CI with
ansible-builder, push them to the GitLab Container Registry, and have AWX pull from there.
Two execution patterns
A core architectural decision that drives your K8s cluster sizing:
| A: AWX Control-plane-only on K8s cluster | B: Everything on K8s cluster | |
|---|---|---|
| Where jobs run | Dedicated execution nodes (VMs) via Receptor mesh | As pods inside the K8s cluster |
| Isolation | Strong | Weak |
| Scaling | Add execution-node VMs independently of the cluster | Add K8s worker nodes / bigger nodes |
| Network reach | Execution nodes can sit close to the targets (low latency, clean firewalling) | All egress from the cluster |
| Complexity | One more layer (the mesh) to set up | Simpler: nothing outside K8s |
| Best for | Production, multi-site, many targets | Lab or small companies |
Pattern A is the production standard (and the one used in large real-world deployments).
Pattern B is the right starting point for a Lab.
…we are going for A.
Sizing the worker nodes
The AWX control plane itself is light (~5 vCPU / ~12 GB of requests across the cluster in HA).
What you provision depends on the execution pattern above.
| Pattern | Worker nodes (starting point) |
|---|---|
| A (Control-plane-only) | 3 × (4 vCPU / 8 GB RAM / 60–80 GB disk) |
| B (On-cluster execution) | 3 × (4 vCPU / 16 GB RAM) |
Warning: The floor is 3 worker nodes
One node = no HA (any maintenance is a full outage).
Two nodes = you can run replicas, but a single node failure or drain leaves zero headroom.
Three nodes is the production minimum: lose one, the other two carry the load, and you get real anti-affinity for the
awx-web/awx-taskreplicas.
For a production-minded build that mirrors the large-scale pattern, the recommended shape is: 3 KaaS worker nodes (4 vCPU / 8 GB) for the control plane, 1–2 execution-node VMs added separately, and an external PostgreSQL.
